Fibre Craft Industries (FCI Composites) is the leading fiberglass grating manufacturer in Pakistan, producing both FRP molded gratings and pultruded gratings. Our corrosion-resistant fiberglass grating panels are used as drain covers, trench covers, work platforms, walkways, stair treads and solar walkways — a lightweight, long-life alternative to steel grating. Available in custom sizes, colours and mesh options at competitive prices.
Need FRP grating for your platform, walkway or drain cover? Contact FCI Composites for a custom fiberglass grating quote in Pakistan.
FRP (Fiberglass Reinforced Plastic) grating is a load-bearing panel made of glass fibre in a resin matrix. It replaces traditional steel grating in corrosive and demanding environments because it does not rust, is lightweight, fire-retardant and low in electrical conductivity. FCI is the sole local manufacturer of fiberglass gratings in Pakistan, producing pultruded gratings since the early 2000s and molded gratings since 2016.
Molded vs pultruded FRP grating
FCI manufactures both major types of fiberglass grating so you can match the grating to your load and corrosion needs:
Molded grating — a one-piece panel with bidirectional load bearing, excellent corrosion resistance and high open area. Ideal for drain covers, walkways, platforms and solar walkways. Standard panels are 12ft x 4ft in mesh sizes of 38 x 38 mm and 14 x 14 mm.
Pultruded grating — assembled from high-strength pultruded I-bars for unidirectional, heavy-duty load bearing over longer spans. Available in standard bar heights of 25 mm, 38 mm and 50 mm, custom cut to length and width.
Why choose FCI fiberglass grating?
Corrosion resistant — withstands harsh chemical and wet environments where steel grating fails
Fire retardant — with phenolic resin options for the highest fire-protection rating
Impact resistant — reliable in high-traffic areas
Lightweight — reduces structural load and simplifies installation
Bidirectional load bearing (molded) — adapts to varied layouts
Low conductivity — safer around electrical equipment
Low maintenance and long service life
Easy to fabricate and install, including precise on-site cuts
Cost-effective with uniform appearance
Applications of FRP grating
FCI fiberglass gratings are used across Pakistan as:

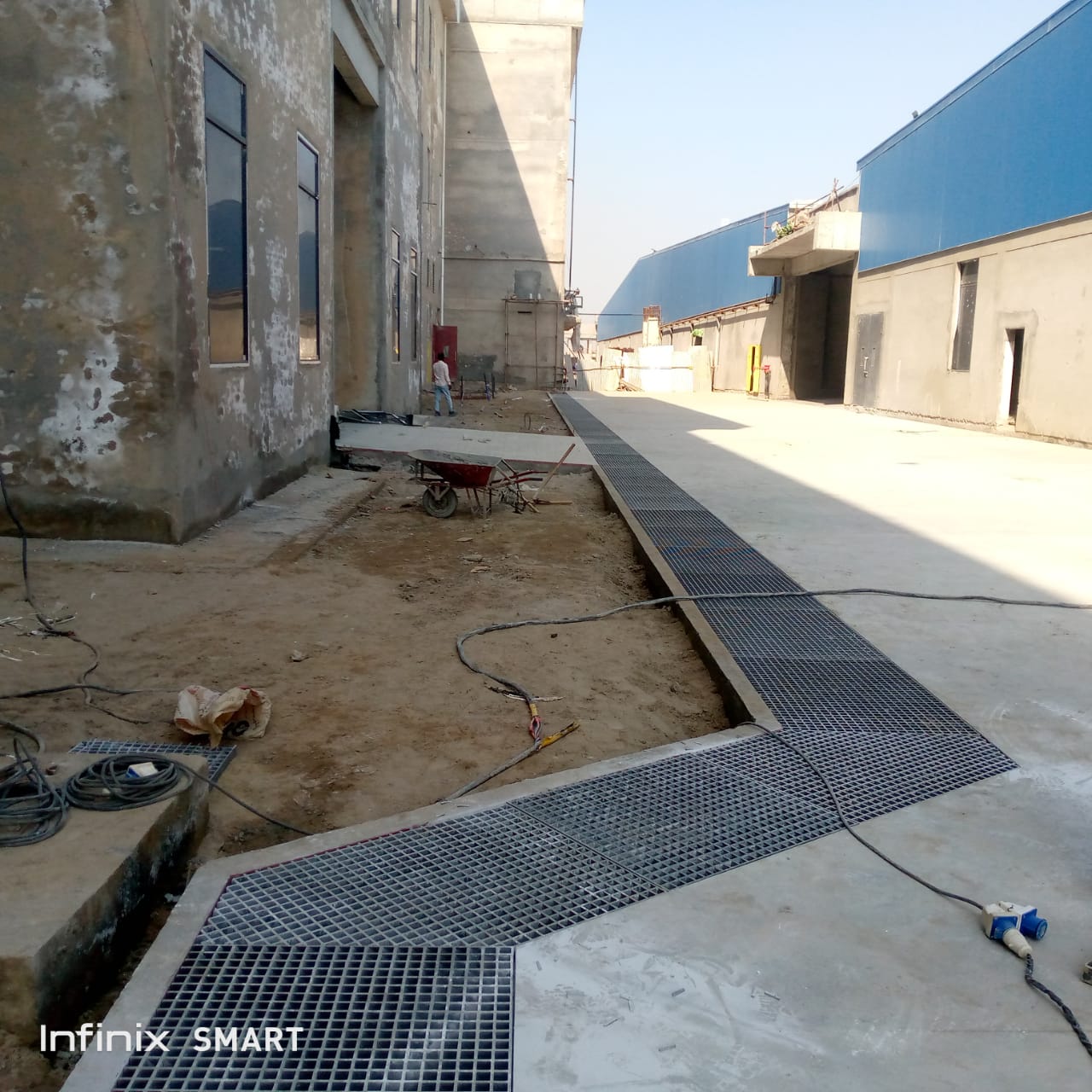

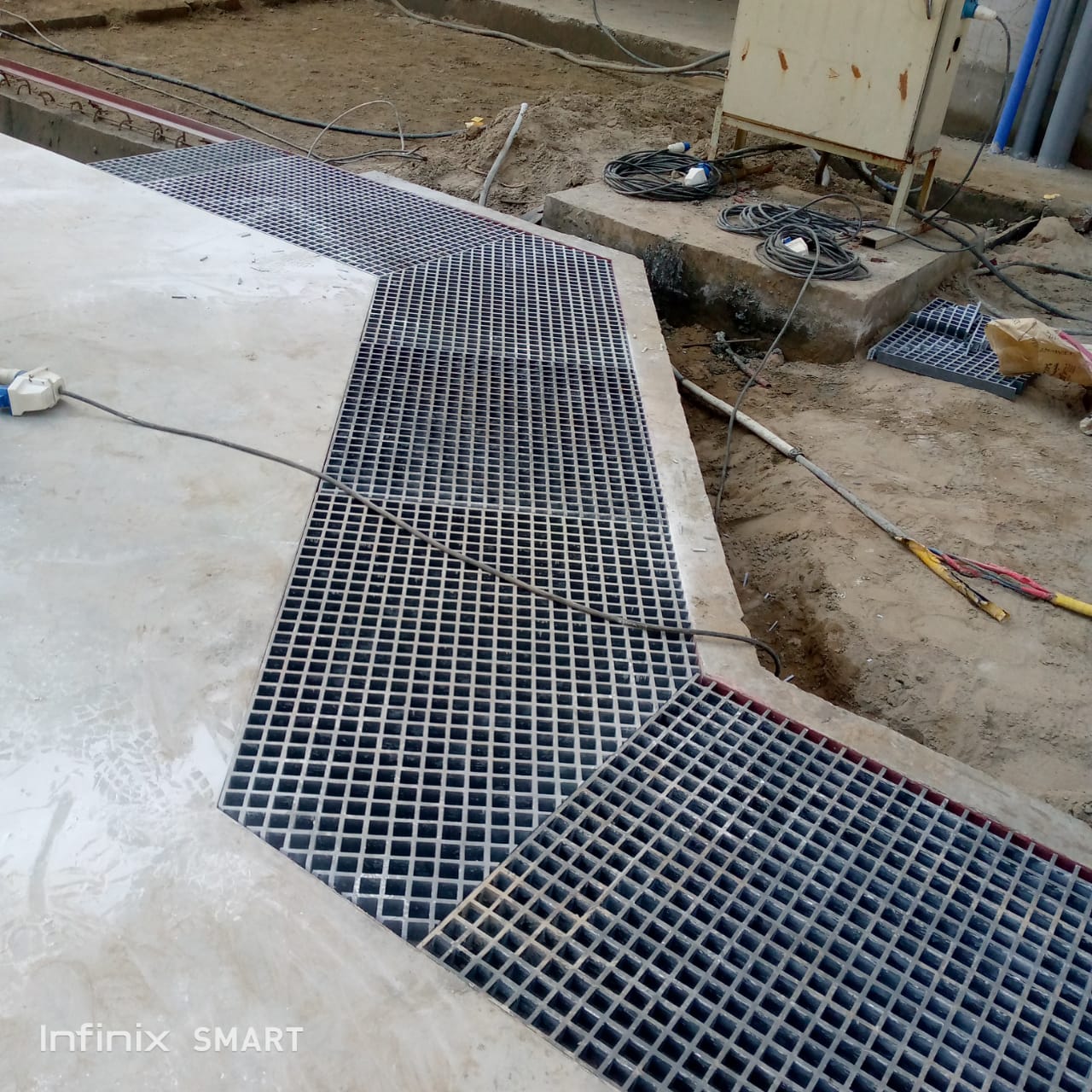

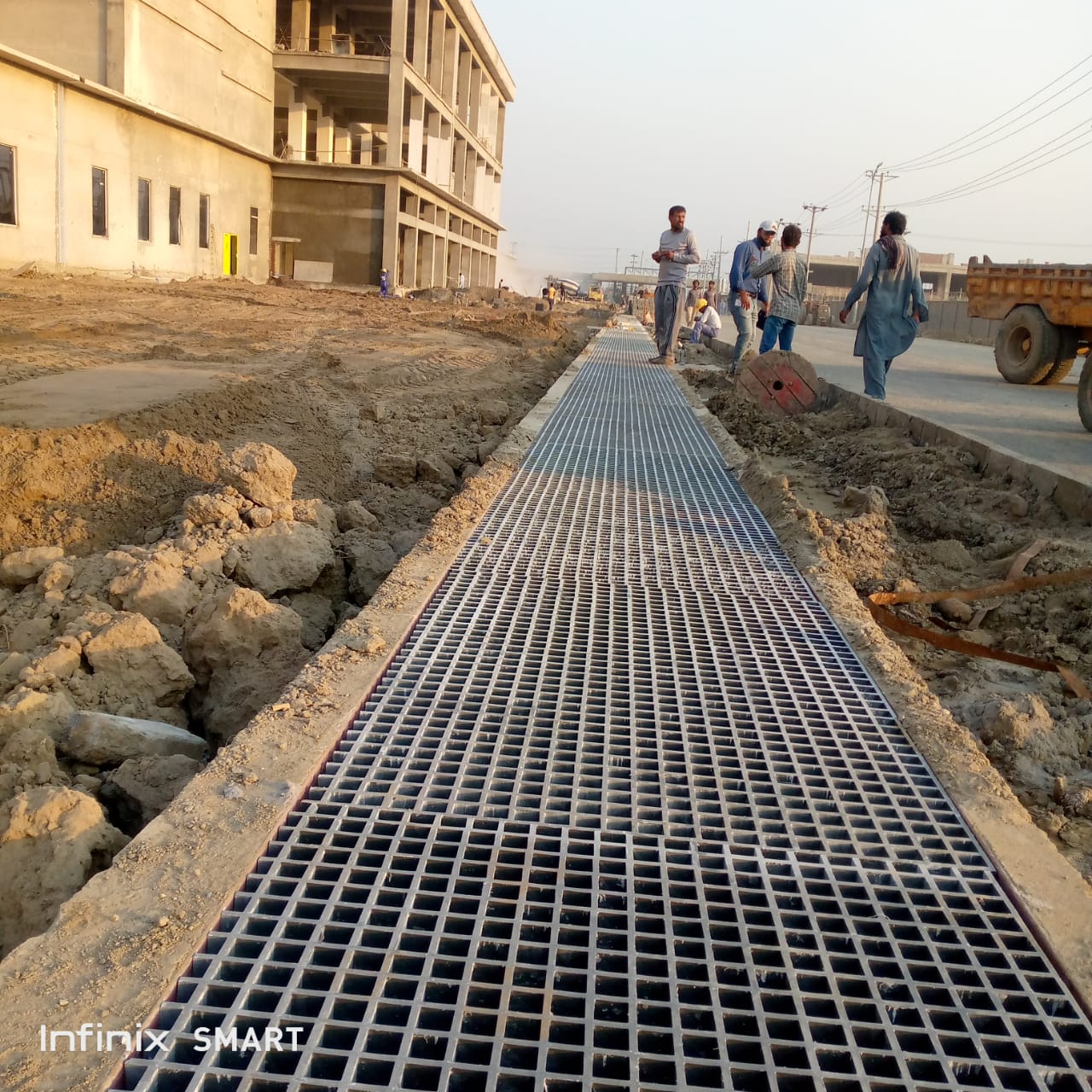

Drain covers and trench covers
Work platforms and catwalks
Industrial walkways and stair treads

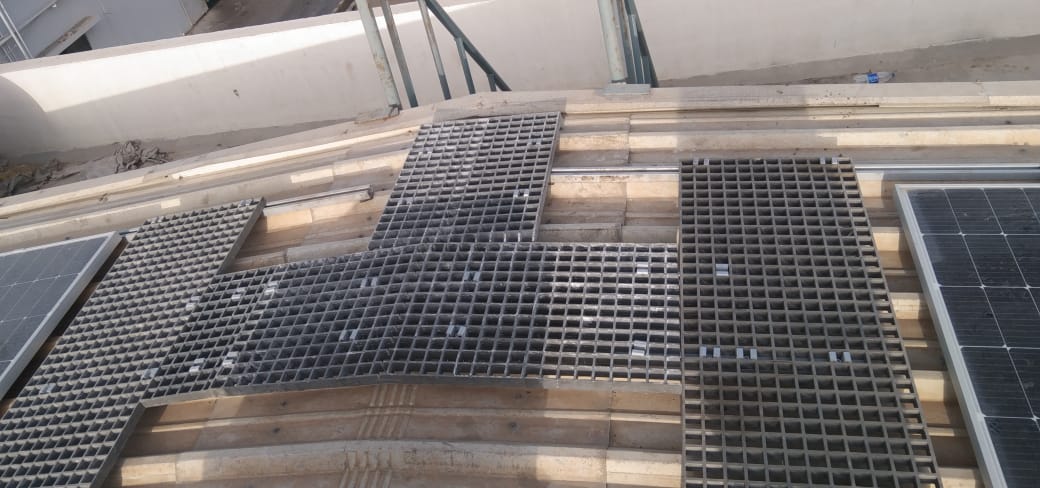

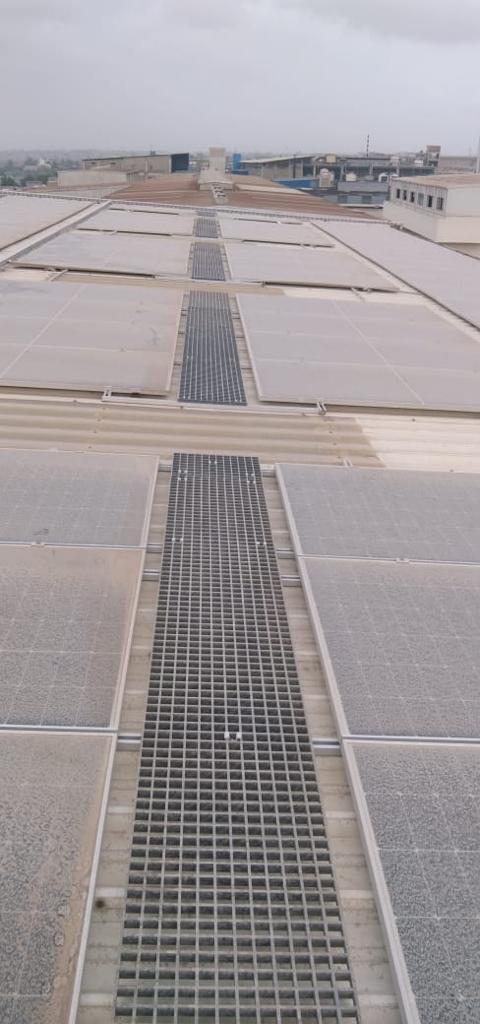

Rooftop solar panel walkways

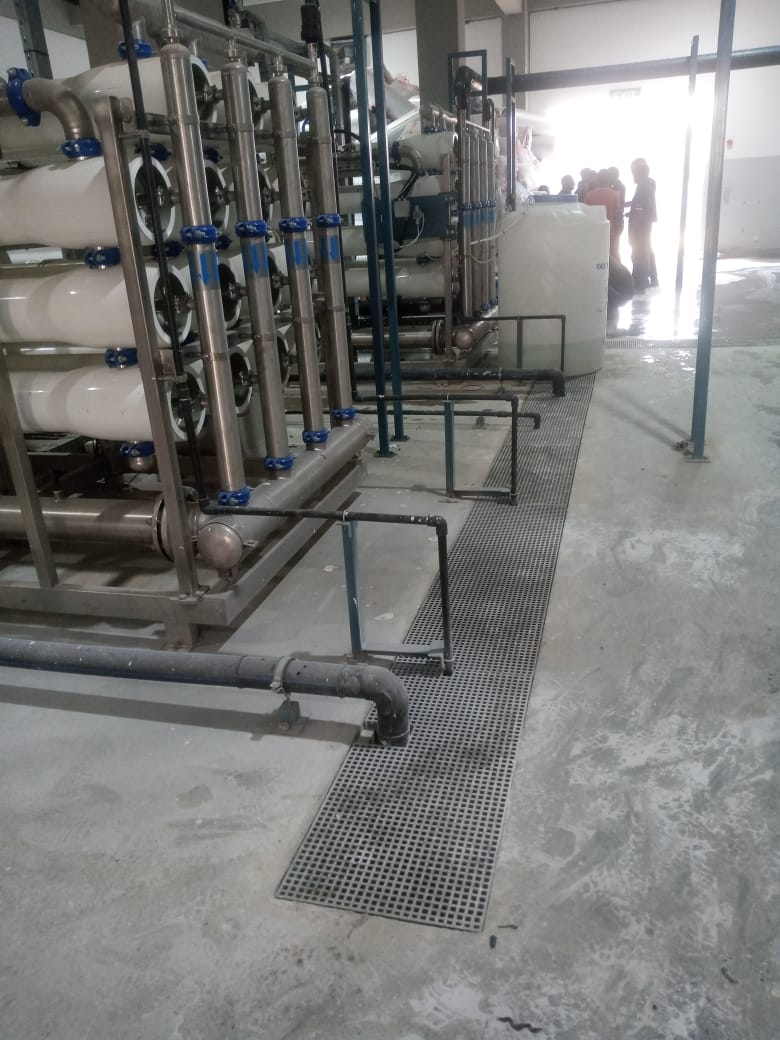

Flooring in corrosive areas of chemical, oil & gas, water-treatment and fertilizer plants
Resin options
Because FRP gratings are reinforced plastics, the resin can be selected for your end use:
Ortho Phthalic Polyester Resin
Iso Phthalic Polyester Resin
Epoxy Vinyl Ester Resin
Phenolic Resin — highest fire protection for the oil & gas industry
Local manufacturing and customization
As the only local fiberglass grating manufacturer in Pakistan, FCI offers customization that imported gratings cannot match — a choice of sizes, colours and mesh options, plus cut-to-size pieces for a precise fit. Our current capacity is 2,000 square feet of grating per day, and our team advises on grating depth during construction to ensure long-term reliability. We also provide on-site installation, with experienced field staff making precise cuts to accommodate minor variations in civil works.
Everything you need to know about FCI Composites FRP fiberglass grating.
FCI Composites (Fibre Craft Industries) is the only local fiberglass grating manufacturer in Pakistan, producing both molded and pultruded FRP gratings in custom sizes, mesh options and resin systems with on-site installation support.
Molded grating is a one-piece panel with bidirectional load bearing and high corrosion resistance, ideal for walkways, platforms and drain covers. Pultruded grating is assembled from I-bars for unidirectional, heavy-duty load bearing over longer spans.
In corrosive and wet environments, FRP grating outperforms steel because it does not rust, is much lighter, is fire-retardant, has low electrical conductivity and needs little maintenance, giving a longer service life and lower life-cycle cost.
FCI molded grating panels are produced in standard 12ft x 4ft size with mesh of 38 x 38 mm and 14 x 14 mm, and can be cut to size. Pultruded grating is available in standard bar heights of 25 mm, 38 mm and 50 mm with custom length and width.
FCI offers Ortho Phthalic Polyester, Iso Phthalic Polyester and Epoxy Vinyl Ester resins, plus Phenolic resin grating which provides the highest fire-protection rating for the oil and gas industry.
Yes. FCI fiberglass gratings have fire-retardant properties, and phenolic-resin grating offers the highest fire-protection rating, making it suitable for high-risk oil and gas applications.
FRP grating is used for drain and trench covers, work platforms, catwalks, industrial walkways, stair treads, rooftop solar walkways and flooring in corrosive areas of chemical, oil and gas, water-treatment and fertilizer plants.
Yes. FCI provides on-site installation with experienced field staff who make precise cuts on site to accommodate minor variations in civil works, and advises on grating depth during construction.
Contact FCI Composites with your application, load and span requirements, preferred mesh size and resin type, and required quantity. The team will recommend molded or pultruded grating and provide a customized quote.
